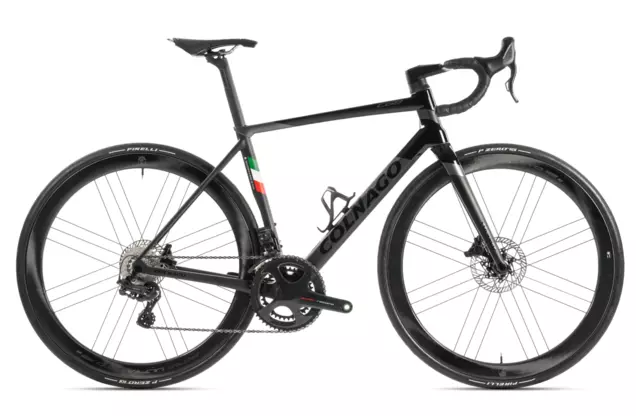

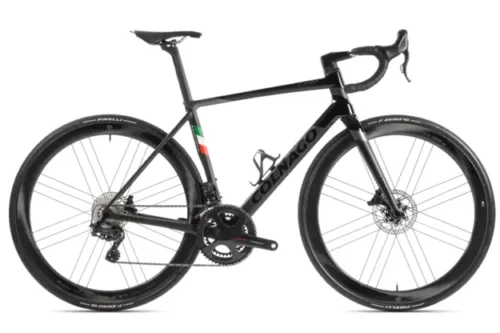

The All-Road Frameset – Delivered as Frameset only or Naturally as the foundation for your personal and unique Dream build, the choice is yours.
‘The Colnago All-Road, don’t let anything stop you ride’
The Colnago C68 platform | Road, All-Road & Gravel
Along with the actual design itself, the biggest news for the C series is that it is no longer a single product, but a family – or platform – presented in three versions: Road, All-road and Gravel.
We are featuring the All-Road which will widen the horizons to dirt roads thanks to the capability for mounting larger diameter tires.
Colnago C68 | Carbon Technology
The C68 is made using a modular structure which is at the heart of the project and provides its excellence. Gluing the various parts of the frame, instead of assembling them inside a mould as happens with monocoque frames, still represents a uniqueness that allows for the creation of more sizes as necessary and, if desired, even a “made to measure” frame thanks to the titanium parts.
The number of parts that constitute the frame is the same as with the previous C series even though, from an aesthetic point of view, its line may be more similar to that of a frame manufactured in one piece. The choice was dictated by the search for a modern look, but always remaining desirable to the traditional Colnago customer, thus widening the range of purchasing possibilities.
Colnago C68 | New Technology
Focusing on the design rationale, we used to build frames with lugs and straight/simple tubes. The C68 has now parts composed with tubes and lugs together, because to reach the same target of lug construction we don’t require so many joints.

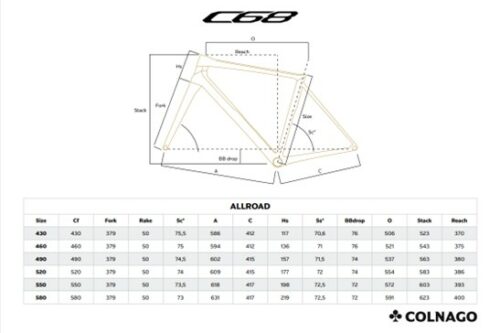

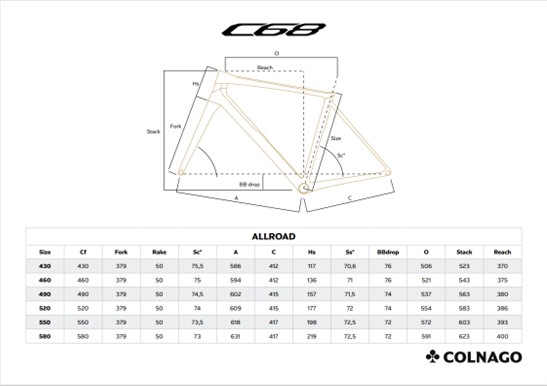

The new construction method enhances the custom sizing option because we can now slide up or down the top tube on the steerer/ downtube, offering custom reach and stack. In the previous construction method we were limited to reach due to the fixed headtube lug stack. With the titanium options we are now no longer limited to adjustments of a few millimetres and 0.x angles, but we can go even in a more extreme direction.
There are still some visible joint on the C68 (such as the upper headtube and the seat post clamp area) to trace back to our root, while other joints are now invisible (like the rear triangle, the downtube-bb area and the top tube).
Why a lugged/multipiece frame instead of a monocoque design?
Obviously it’s not a viable option to have a custom sizing monocoque but we have a few more important advantages in the manufacturing method:
We can better control the lamination since the moulds are smaller and fewer carbon parts compose the single component.
We can use different proprietary technologies to achieve higher pressure inside the parts, which we can’t use on monocoque construction.
We can be smarter in tuning the final product to match our customer target.
Colnago C68 | Structure
From a structural point of view there are some noteworthy differences compared to the predecessor, C64: the bottom bracket, now with the standard T47, has merged with the seat tube while the “top tube” is characterized by the presence of two pieces / lugs: one connected with the seat tube, the other with the steering tube.
These pieces / lugs are integral with each other in the full carbon frame version, but there is the possibility of having these two parts / lugs in titanium alloy (more details follow). Finally, in addition to being lighter than the C64 in similar sizes, the frame is more rigid, especially in the steering area, giving better precision while riding.
Colnago C68 | Frame Features
The shape refinement process has also made it possible to optimize some parts of the frame including the fork, now more rigid and lighter than the previous one, with an innovative internal cable routing, thanks to the shape of the new head tube can be built without the current and more complex “D” shape.
Remaining in the front section of the frame, note the integration of a tenfunction multitool placed directly inside the steering cap (four-function multitool for the two smaller frame sizes). To maintain continuity in terms of spare parts and ease of production, the shape of the seat post is identical to that of the C64 and V3Rs.
Finally, a new option allows for the removal of the front derailleur support for mounting groups with a single-chainring crankset. In size 51s, the weight of the raw frame without metal parts (e.g. dropout hanger, derailleur attachment and various small elements) is approximately 930gr (+/- 10gr) in full carbon (unpainted).
Colnago C68 | Optional Titanium Lugs
The C68 will be available not only in the classic full carbon version but also in a limited edition with titanium lugs. With this option Colnago will employ 3D printing technology, starting from a digital model to create a three-dimensional physical object, the construction technique of the future.
Why titanium? Titanium is the best 3D printable material and is one of the few materials that are naturally compatible with carbon fibre in mechanical engineering. The printable parts / lugs in titanium allow practically unlimited options and allow, if necessary and / or requested, to achieve the true “made to measure” frame sizes.
To create these parts we are collaborating with a leading Italian company operating in the medical sector, that is at the pinnacle of precise and efficient 3D printing. Why a full carbon version then? For the lower costs related to construction times and to maintain a pure carbon aesthetic that is still considered a positive in drop bar cycling.
Colnago C68 | T47 Bottom Bracket
The C68 features the stiff, secure and adaptable T47 Press-fit bottom bracket standard. Colnago first introduced a threaded oversized BB eight years ago with the C60, of which the T47 is ultimately derivative. Called Thread-fit 82.5, it featured an 82.5mm wide 45mm threaded sleeve set, which was initially just a sleeve to be used with a common press-fit solution, but soon became a true threaded system with third party solution as the CeramicSpeed, and other compatible systems.
Soon after, T47 was born around a press-fit shell dimension, effectively mirroring our solution with a slightly bigger diameter (45mm vs 47mm) and Colnago decided to adopt the T47 on future frames for the happiness of customers and shops.
Colnago C68 | Handlebar
Avaiable from us as a choice or with Deda integrated cockpit or Vinci
The new CC.01 integrated handlebar features a relative long reach, a compact drop and a decent flare (+2cm), but no outsweep. Everyone who rides a modern gravel bike already knows and appreciates the drop position with a wider base and how much the control of the bike is enhanced. At the same time, the common trend now is to go narrower on the hoods for an improved aerodynamic position.
The choice to reduce by 1cm the hoods width, compared to the traditional even measures, goes along with a wider drop position, just 2 centimeters wider. We then took the opportunity of the flared drop to increase a bit the reach, stretching it out to 80mm (vs 75mm wich is kind of a standard on compact handlebar) to offer a more “into the bike” position on the downhill and a much bigger flat surface just behind the hoods on the top part, to rest the palm of the hands for a better comfort with every type of brake levers.
The bar is designed for the modern wireless and wired electronic groupset and internal cable routing, but it’s still compatible with external routing and rim brakes. To complete the package, there’s a dedicated computer mount with a “gopro style” bayonnet and two different length for almost any kind of device.
Colnago C68 | Multitool
The new CC.01 cockpit also integrates a small multitool in the top of the stem cap. The flush fitment of this tool requires the fork to be precisely cut to the correct length. Please note – the tool can be easily removed to save a few grams, but the carrier is a structural part of the fork, so if removed please replace it with a Colnago long fork expander unit.

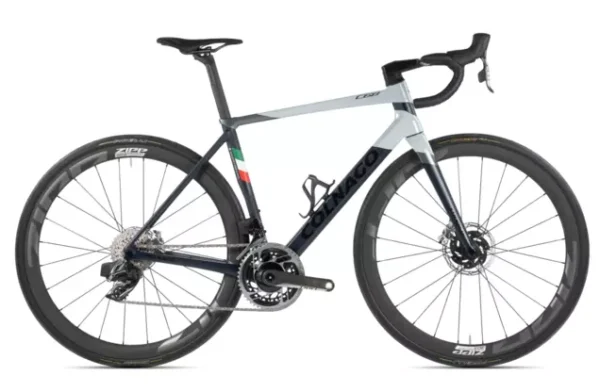

The Colnago C68 the next evolution of this classic bike
